Lincoln LS LS Swap engine mounts to mount any of the following engines 4.8, 5.3, 5.7 (LS1), 6.0 (LS2) , 6.2 (LS3), 7.0 (LS7) in a 2001-2006 Lincoln LS.

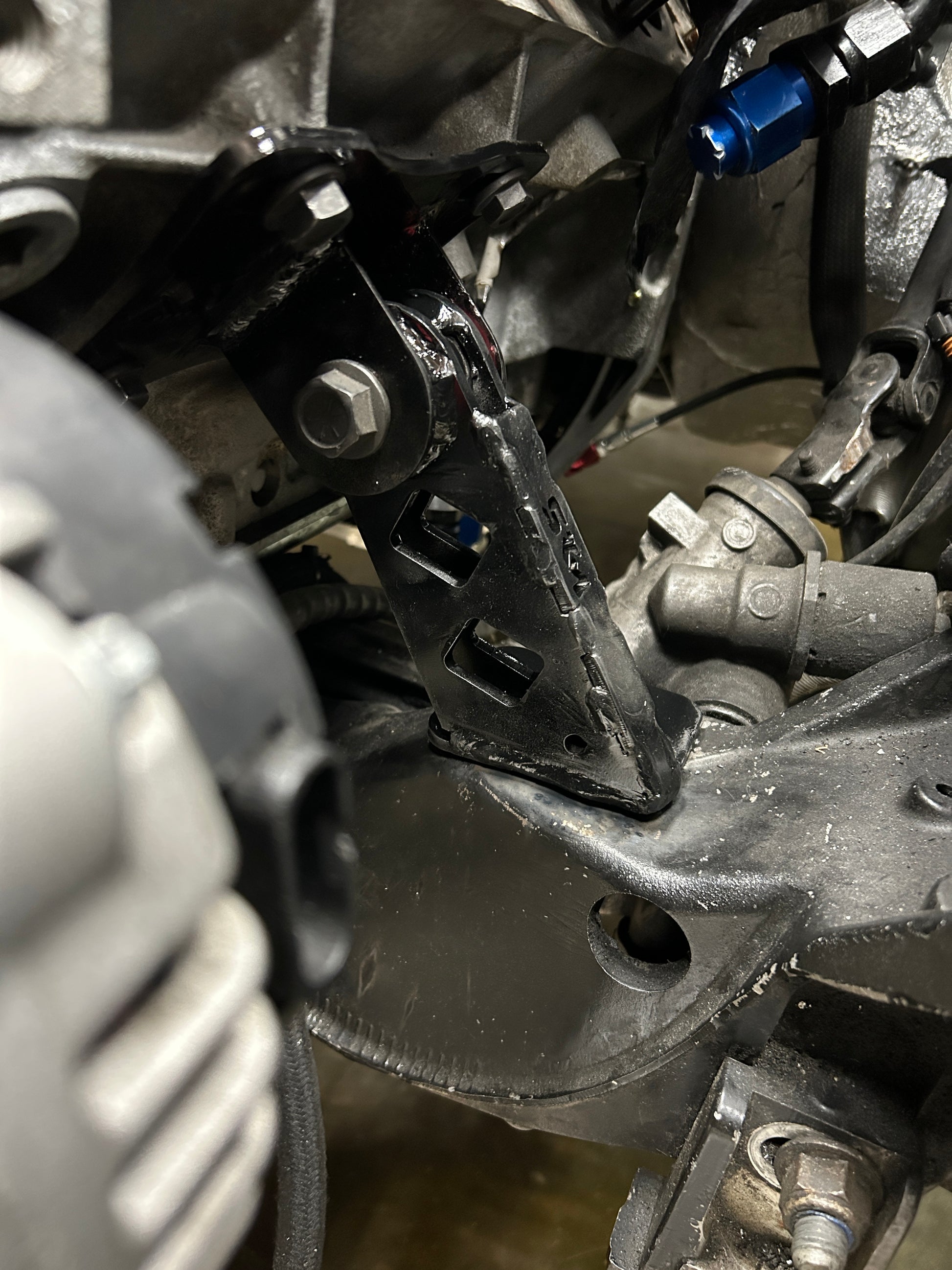

Engine mounts are a direct fit, no welding, grinding, or fabrication required

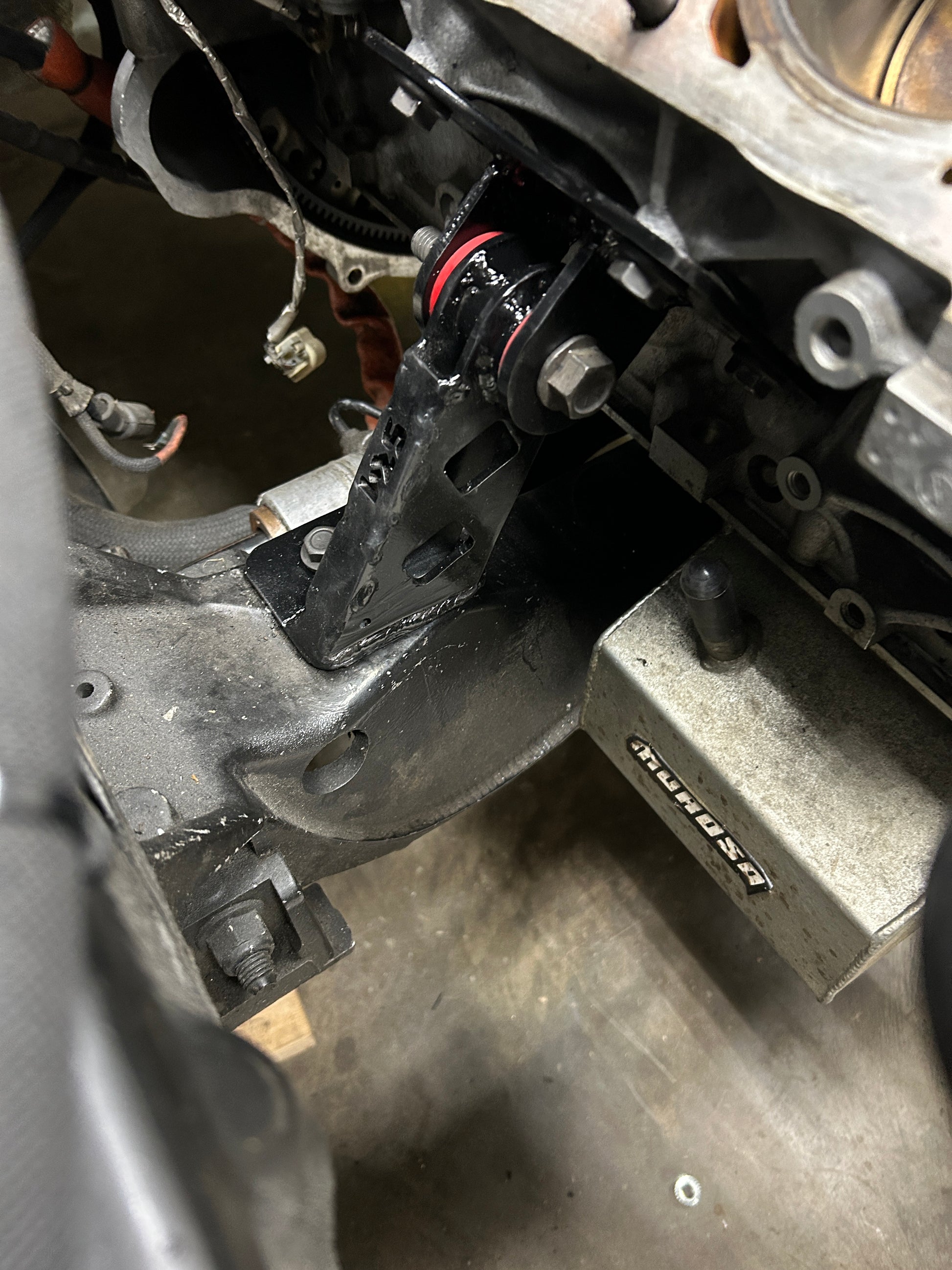

, they bolt directly into the stock subframe and bolt pattern on LS blocks using front sump Moroso 20146 or 20138 oil pan and Fbody accessory drives.
It may be possible to use other accesory drives, but you will either have to relocate the front sway bar, or notch your subframe to allow the engine to go further back.
This kit is designed to work with a "block hugger" or "tight tuck" 1-3/4" headers but expect to have to do some modification to the header around the steering shaft as it will likely interfere. Long tubes will not fit without serious modification.
If you want more information on what it takes to swap your lincoln checkout our blog here

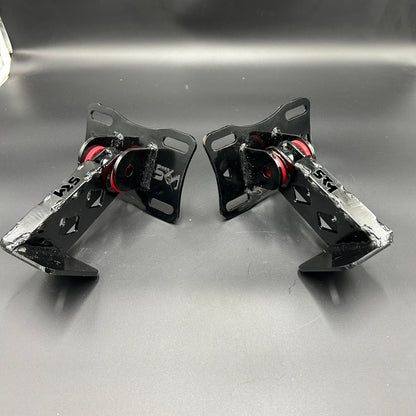

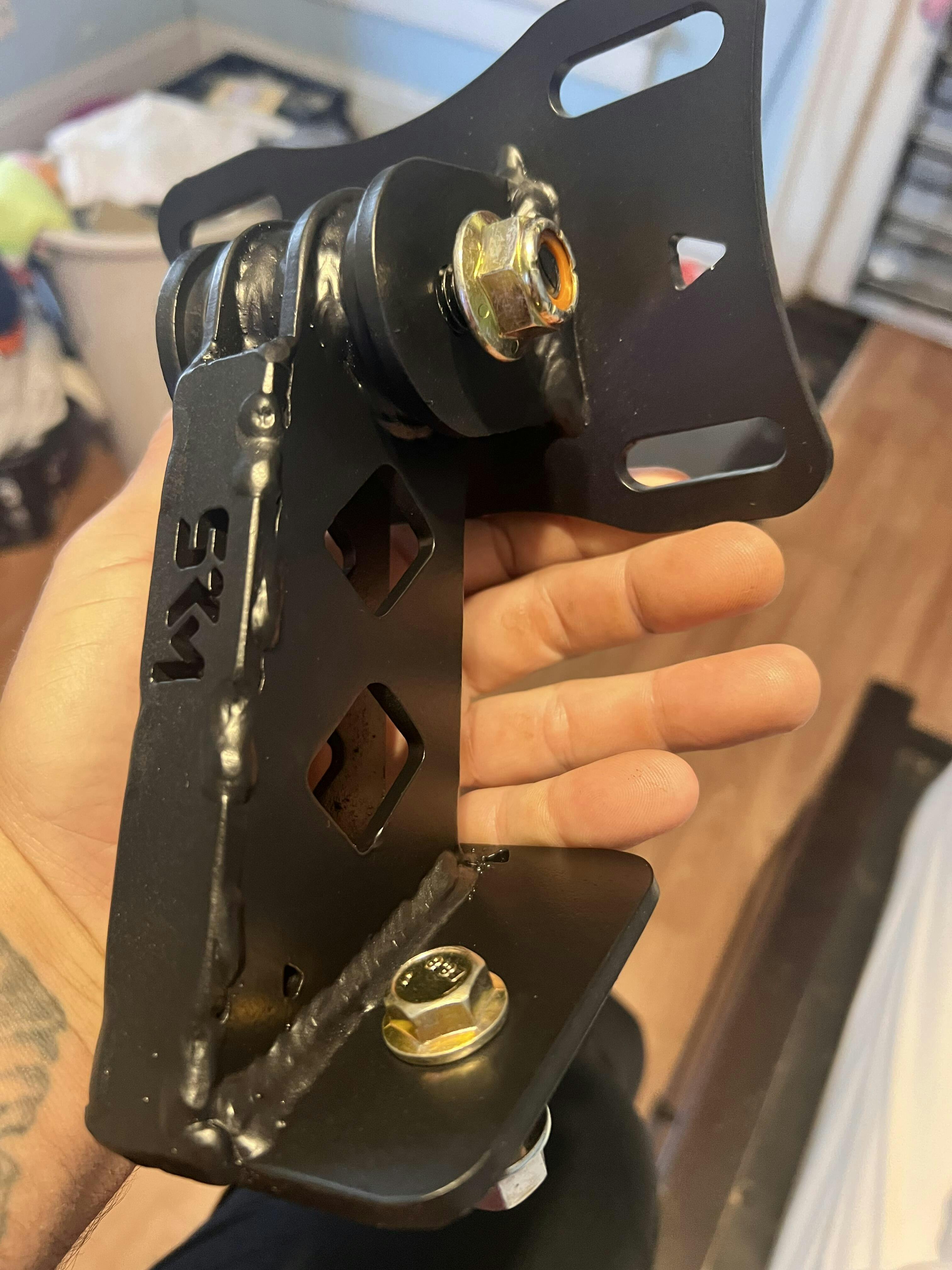

(1) purchase provides you with a full engine mount kit and hardware.
This is a non-stock item, will take 1-2 weeks to manufacture and ship each mount kit.
ATTENTION: USE OF THESE PRODUCTS IS AT YOUR OWN RISK. YOU ASSUME ALL LIABILITY. STU KELLY MOTORSPORTS INC. MAKES NO REPRESENTATIONS OR WARRANTIES TO THE PRODUCTS OR THEIR INTENDED USE OR MISUSE, LEGAL OR ILLEGAL, BY PURCHASER AND DISCLAIMS ALL LIABILITY FROM PURCHASER, USER, OR ANY THIRD-PARTY RELATED TO CLAIMS ARISING FROM ANY USE OR MISUSE. ALL PARTS PROVIDED TO YOU BY STU KELLY MOTORSPORTS, INC., INCLUDING THOSE SOURCED FROM THIRD-PARTY MANUFACTURERS, ARE TO BE INSTALLED BY A LICENSED MECHANIC.
WARNINGS: VEHICLE MODIFICATION FOR ANY REASON AND USE OR MISUSE OF THE PRODUCTS, INCLUDING FOR MOTORSPORTS AND RACING, IS INHERENTLY DANGEROUS AND CAN RESULT IN DEATH, BRAIN DAMAGE, PARALYSIS OR SERIOUS PERSONAL INJURY. YOU ASSUME THE RISK OF INJURY OR DEATH WHENEVER ENGAGING IN VEHICLE MODIFICATION OR PARTICIPATING IN MOTORSPORTS, RACING, OR VEHICLE MODIFICATION. PURCHASER ACCEPTS RESPONSIBILITY FOR ALL AFORMENTIONED RISKS, INCLUDING FINES/IMPRISONMENT FOR NON-COMPLIANCE WITH STATE AND FEDERAL LAWS.
IF YOU DO NOT UNDERSTAND OR APPRECIATE THE DANGER OF THESE ACTIVITIES, PLEASE REFRAIN FROM THEM AND ALL FURTHER PURCHASE AND USE OF STU KELLY MOTORSPORTS INC. PRODUCTS.
